Video Inspection

TechSouth Inc Video Probe

The TechSouth Inc Video Probe is a 25 foot flexibleprobe to inspect inside welds on stainless steel sanitary tube welds 1 inch to 4 inch  The probe has a 90 degree spring loaded 5.5 mm camera and adjustable led lights.  the probe comes with a set of centering devises to help hold the camera centered in focus.

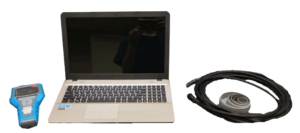

Kits Include

- 25 foot 5.5 mm probe

-handheld monitor with sd card

- laptop computer for larger screen and typing

- video capture hardware and software

- 1-4 inch centering devises

- hardcase


Products

hawkeye (1).jpg

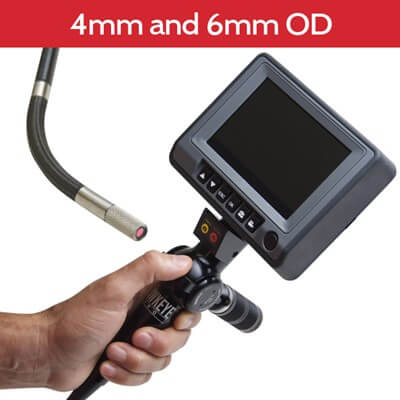

Hawkeye V2 Flexible Video Probe Kit

The all new Hawkeye® V2 Video Borescopes contain a brighter, higher resolution, more durable camera, delivering sharp, clear photos and videos in a wide range of demanding inspection applications. The new, larger 5" LCD screen provides detailed close-up views, has a 2X zoom function, mirror image capability, and easy-to-use intuitive controls. We've designed a new articulation mechanism, and increased the range to +/-150 deg. The insertion tube has rugged, 4-layer construction, with a crush resistant stainless steel inner layer, and an abrasion resistant Tungsten outer layer which is urethane impregnated for smoother insertions. New optional 90° DOV Prism Tip works seamlessly with the V2. Hawkeye V2 Video Borescopes are available in diameters of 4 and 6 mm, lengths of 1.5m, 3.0m, and 6.0m.

The Hawkeye V2 video borescope is equipped with a 70 degree field of view and a focal range of 12mm to infinity. The 70 degree FOV coupled with the close focus tip allows inpectors to focus from 4mm to infinity during aviation maintenance.

Applications:

Aircraft & Power Generation maintenance teams can quickly and easily inspect turbine blades, combustion chambers, cooling tubes, and much more, all without the need for costly and time consuming engine and system tear-down. Foundries can inspect for flash, sand, and voids inside complex castings.

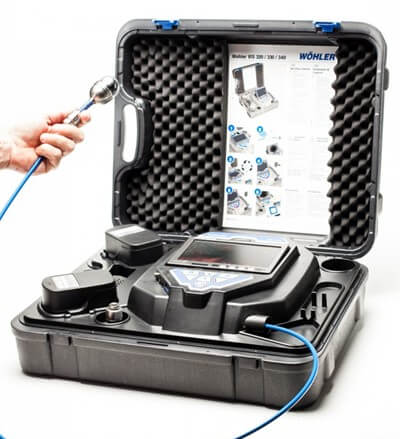

Wohler VIS 340

This advanced camera system sheds light in the dark. The articulating eye of the full color camera head lets you take a close look at pipes, air ducts, chimneys, vents, cracks, welding seams, gaskets, and manholes. The super bright wide screen TFT monitor provides brilliant picture quality. Your 'findings' can be recorded on the included SD-Card.

The waterproof 1 1/2" (40 mm) camera always fits. With its 180° pan & 360° tilt camera head, it gives you an inside view into drainage pipes, air ducts, and intermediate ceilings. The innovative design provides super bright lighting and simple operation, all in one heavy duty carrying case.

A crystal clear picture appears on the wide screen TFT monitor so you can identify problems before they occur. The Wohler VIS 340 Inspection Camera comes standard with a built in SD-Card for documentation. The state-of-the-art NoMH battery packs provide 1.5 hours continuous operation. The power supply offers simultaneous operation and battery recharging.

woehler340 (1).jpg
